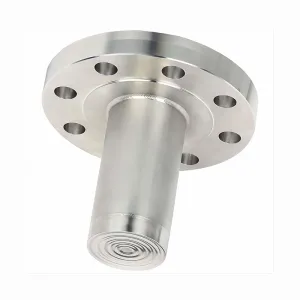

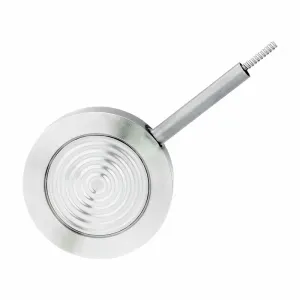

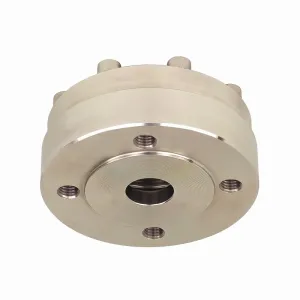

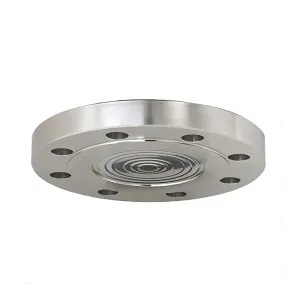

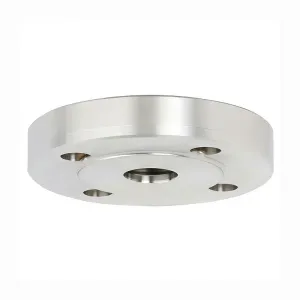

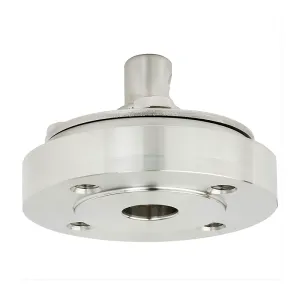

A flange diaphragm seal is a critical component used in various industrial applications to protect pressure measurement instruments from harsh or corrosive process media. It acts as a barrier between the measuring device, such as a pressure gauge, transmitter, or sensor, and the process fluid, ensuring accurate and reliable measurements while extending the lifespan of the instrument. This technology is widely employed in industries such as oil and gas, chemical processing, pharmaceuticals, food and beverage, and water treatment, where aggressive or hazardous media are common.The primary function of a flange diaphragm seal is to isolate the pressure-sensing element from direct contact with the process fluid. This is achieved through a flexible diaphragm, typically made from materials like stainless steel, Hastelloy, or PTFE, which is capable of withstanding corrosive, abrasive, or high-temperature conditions. The diaphragm is mounted within a flange assembly, which is designed to connect directly to the process piping or vessel. When pressure is applied, the diaphragm flexes, transmitting the pressure to the instrument through a filled system, often containing a hydraulic fluid such as silicone oil or glycerin.One of the key advantages of using a flange diaphragm seal is its ability to handle challenging process conditions. For example, in applications involving highly viscous fluids, slurries, or media with suspended solids, the diaphragm prevents clogging or damage to the pressure instrument. Additionally, it provides protection against extreme temperatures, ensuring accurate readings even in environments where thermal expansion or contraction could affect performance.Flange diaphragm seals are available in various configurations to suit different applications. Common types include threaded, flanged, and sanitary designs, each tailored to specific installation requirements. The choice of materials for the diaphragm, flange, and fill fluid is critical and depends on factors such as chemical compatibility, temperature range, and pressure ratings. Proper selection ensures optimal performance and longevity.Installation and maintenance of flange diaphragm seals are straightforward, but attention to detail is essential. Proper mounting, alignment, and filling of the system are crucial to avoid measurement errors or leaks. Regular inspections should be conducted to check for diaphragm wear, corrosion, or damage, especially in demanding environments.In summary, a flange diaphragm seal is an indispensable component for protecting pressure measurement instruments in harsh or corrosive applications. Its ability to isolate the instrument from process media, combined with its durability and versatility, makes it a reliable solution for ensuring accurate and consistent pressure readings across a wide range of industries.
